Ref# FSL25417


Locomotives For Sale



make an offer
contact us
quote sheet

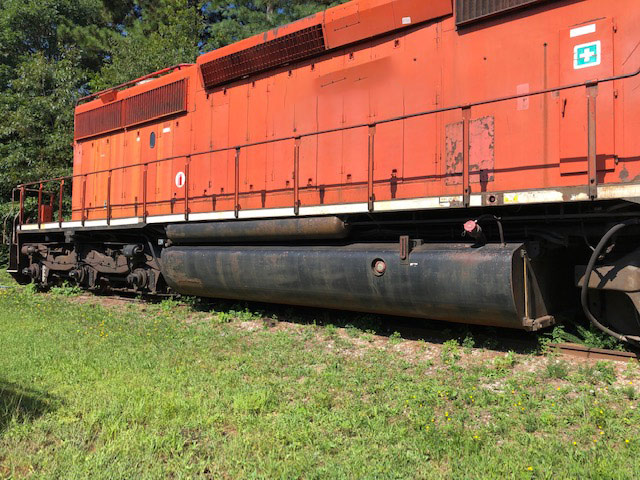

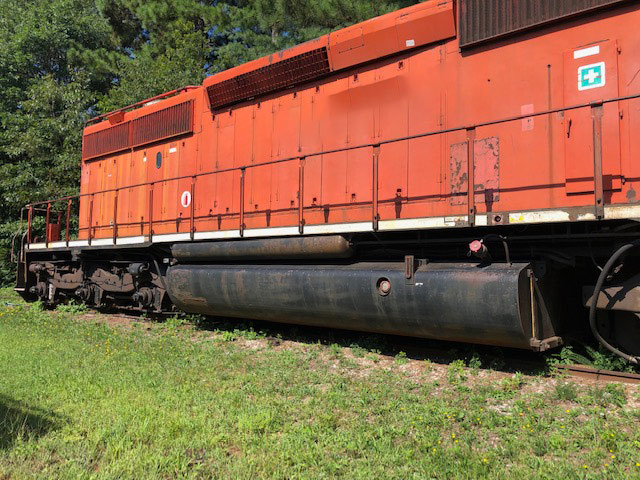

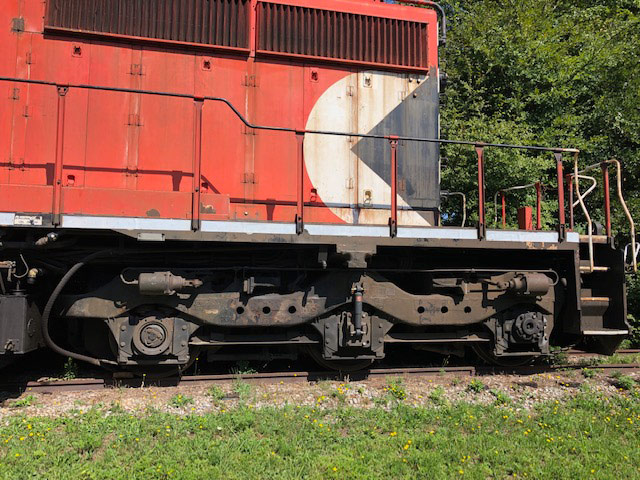

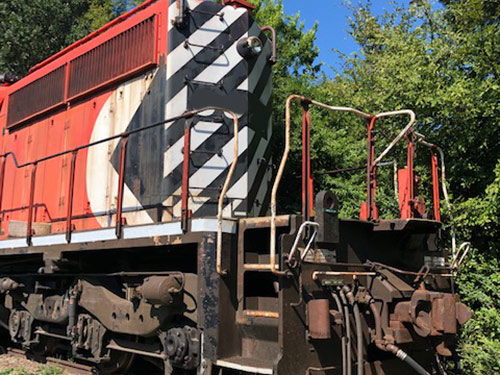

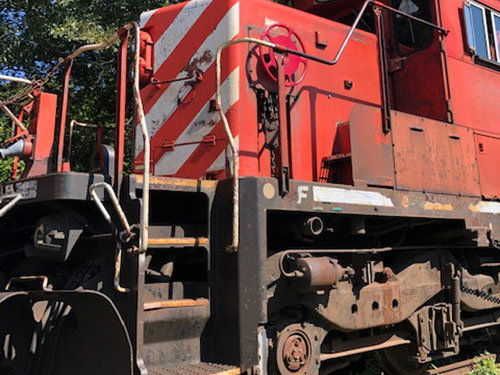

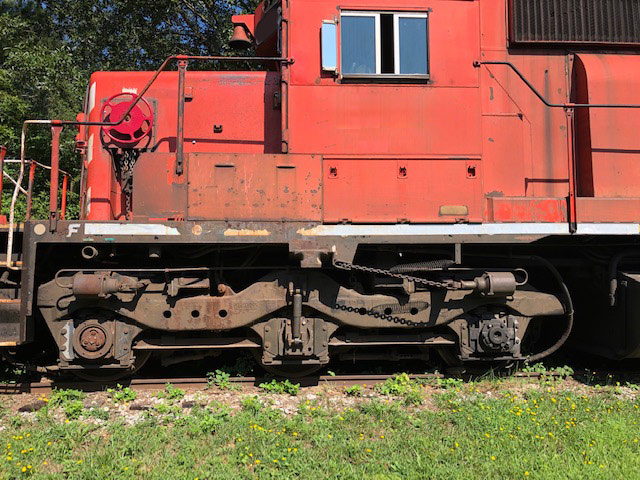

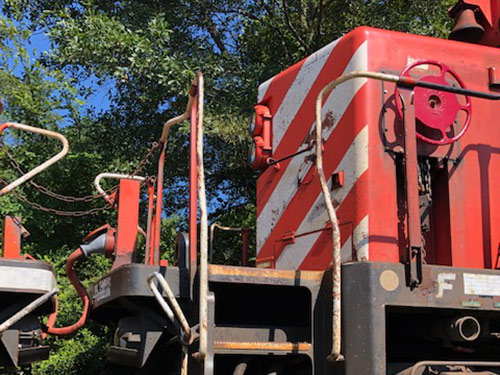

(Photos are Representative)
(4) SD 40-2s
EMD 645E3 16 cylinder
Bore & Stroke: 9.02in X 10in
RPM (Maximum / Minimum): 904 / 318
Main Generator: AR10
Horsepower: 3000
Gear Ratio: 62:15
Speed: 65 mph
Trucks: HTC 6-Wheel
Configuration: C-C
Traction Motor Blowers: Electrical Drive (4)
Model: D77
Weight: 368,000 lbs
Traction Motors: Six
Tractive Effort (starting) 115,000 lbs @31.5%
Tractive Effort (continuous): 82,100 lbs @ 11 mph
Multiple Unit Capability: Yes
Dynamic Braking: Yes
Auxiliary Generator: Delco A8102
Alternator: GMD14
Air Brake: Westinghouse
Model: 26L Compressor: Gardner-Denver
Model: WBO
Quantity Built: 3957
Dates: 1/1972 to 2/1986
Total Length: 68ft 10in
Wheel Diameter: 40in
Truck Wheel Base: 13ft 7in
Height to Top Engine Hood: 15ft 1.2in
Height to Top Cab: 14ft 8.7in
Cab Width: 10ft
Engine Hood Width: 7ft
Distance between truck centers: 40ft
Locomotive Wheel Base 53ft 7in
Minimum Turning Radius: 30 degrees
Fuel Oil: 3200
Lubricating Oil: 395
Engine Cooling Water: 275
Sand Capacity: 56 cu ft
Can fully qualify these units and place them in running condition, free of defects within 45 days of a signed order, perhaps two of them within 30 days
This would include a full load test prior and at the end of work
Location: SC




For more information about this listing
Please call 512-263-1953

Ask to speak with Garrett Crouch
or email gcrouch@sterlingrail.com
